Automated, Non-Contact Large Scale Metrology

Laser Radar MV331/351


The Nikon Laser Radar is the only solution available that provides automated, non-contact measurement capability for large-volume applications of up to 50 meter radius. This revolutionary measuring instrument is suited for repetitive, complex, hard-to-reach, delicate and labor-intensive inspection tasks in automotive, aerospace, renewable energy and many other large scale applications.



Features

High accuracy and repeatability

The accuracy is dependent on the measurement volume and accuracies range from 24µm (2m distance) to 102 µm (10m distance).

Fast targetless and non-contact measurement

Laser Radar’s propriety laser reflection technology obsoletes tedious positioning of targets at difficult-to-access locations. Furthermore, the system offers inspection speed up to 2000 points per second in Ultra-fast Vision Scan capture mode. Laser Radar plays in a different league than laser tracker and photogrammetry.

Flexibility in measuring surfaces and finishes

Recapturing one billionth of the reflected laser beam is enough for the Laser Radar to accurately perform a measurement. This means the Laser Radar can scan dark diffuse as well as highly reflective materials or surface finishes of any colour at sharp incident angles. The system’s high signal/noise ratio yields repeatable range measurements on composites, metals and even highly reflective painted surfaces.

Powerful feature, hole and edge measurement capabilities



The Laser Radar’s edge detection tools also allow users to measure both sharp and hemmed edges with superior accuracy.

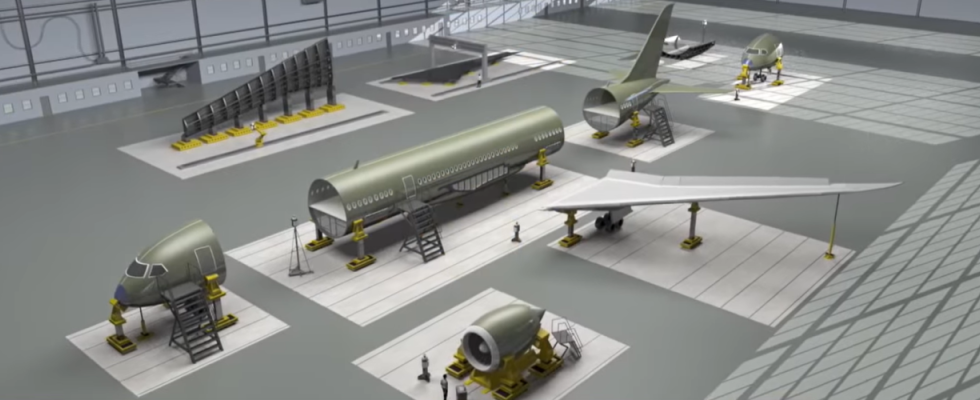

The Laser Radar is being used in many different aerospace applications



3 cups

Flour

Mold & Tooling

1½ cups

Butter

Engines

Barrel sections

Wing to body join

Wings / Flaps / Tailfins

Flight control surfaces

Video

Inline inspection with Laser Radar on robots


LASS Technology Nikon Laser Radar Automo

Inline inspection

Nikon Metrology Laser Radar Shop Floor C

Features such as holes, slots, pins, studs can be quickly inspected using the Laser Radar.

Nikon Metrology  Laser Radar for bypass

By-pass inspection station

Laser Radar on Robots is up to 6x faster for feature inspection than traditional tactile inspection with horizontal arm CMM.

Incoming component inspection

Video



Technical Data

LASS Technology Nikon Laser Radar Spesif


Application

Nikon Laser Radar Aerospace Fuselage.jpg
Nikon Laser Radar Automotive.jpg
